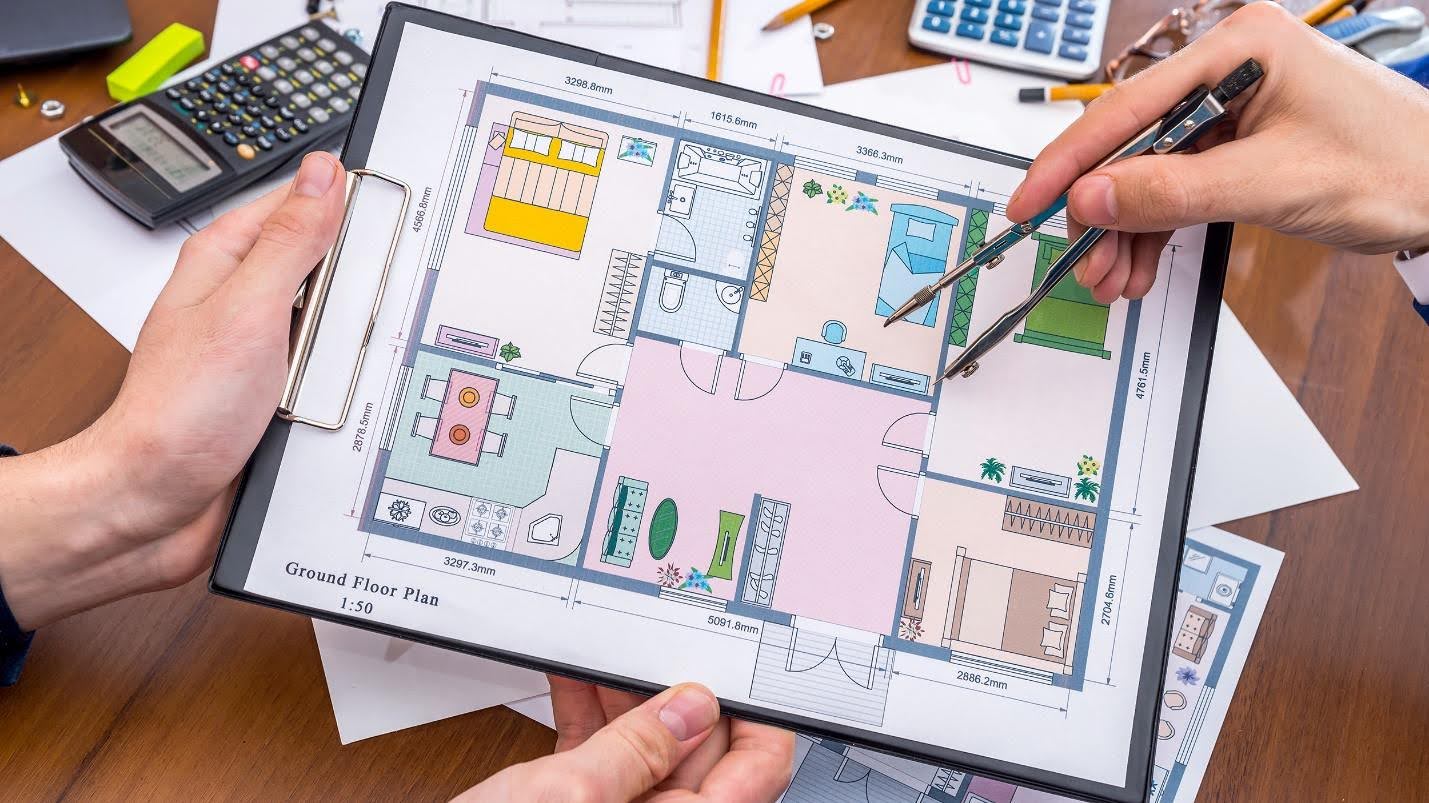

Many people assume that a floor plan and a measured survey are the same thing. While they are related, they serve different purposes and provide different levels of detail.
Understanding the difference between a floor plan and a measured survey is essential if you are planning a renovation, extension or redevelopment project.
At Line Surveying UK, we provide professional measured surveys across London and the UK, ensuring architects and clients work from accurate and reliable information.
A floor plan is a drawing that shows the layout of a property from above. It typically includes:
Room layouts
Wall positions
Door and window locations
Basic room dimensions
Floor plans are commonly used for estate agent marketing, space planning or general reference. However, not all floor plans are produced using professional survey methods.
In many cases, marketing floor plans are approximate and may not include accurate levels, structural detail or precise measurements.
A measured survey is a detailed and accurate survey of an existing building, carried out using professional equipment.
A measured survey may include:
Accurate floor plans
Elevations
Sections
Level information
Structural features
Modern surveys often use 3D laser scanning to capture millions of data points. As a result, the final drawings accurately represent the true dimensions and geometry of the building.
Because the data is collected systematically, the survey provides a reliable foundation for architectural design and construction.
Although both show layout information, there are important distinctions.
A standard floor plan may be approximate. A measured survey is created using precise measurements and professional survey techniques.
Floor plans usually show basic layouts and dimensions. Measured surveys include additional information such as ceiling heights, floor levels and structural elements.
Floor plans are often used for marketing or simple layout reference. Measured surveys are used for architectural design, planning applications and construction.
Architects and engineers rely on measured surveys because they require dependable data. Marketing floor plans are not suitable for technical design work.
Architects need accurate baseline information before beginning a design.
If a design is based on approximate measurements, it may not fit the existing building correctly. Even small inaccuracies can cause issues during planning or construction.
A measured survey removes uncertainty and allows architects to design confidently.
In some situations, a basic floor plan may be adequate, such as:
Estate agent marketing
Basic space planning
General property reference
However, once structural changes or planning applications are involved, a measured survey is usually required.
A measured survey is essential for:
Extensions and loft conversions
Refurbishment projects
Change of use developments
Heritage properties
Commercial redevelopments
In these cases, precise baseline data reduces risk and improves coordination.
Line Surveying UK carries out accurate measured surveys using modern equipment and structured methodologies.
Our drawings are compatible with AutoCAD and Revit, providing architects and engineers with dependable information from the start of a project.
Accurate survey data helps reduce design risk and improve project efficiency across London and the UK.
No. A floor plan shows layout information, while a measured survey provides precise dimensions and detailed building data.
No. Estate agent floor plans are usually approximate and not suitable for architectural design.
Yes. Accurate floor plans are typically included as part of a measured survey service.
